Yasunaga Specs

Specs

ADVANCE PERFORMANCE

Air Pump Series



yasunaga-ap

Type

  • AP-30
  • AP-40
  • AP-60
  • AP-80
  • AP-100
  • AP-120

Size

ukuran-yasunaga-ap

Graph

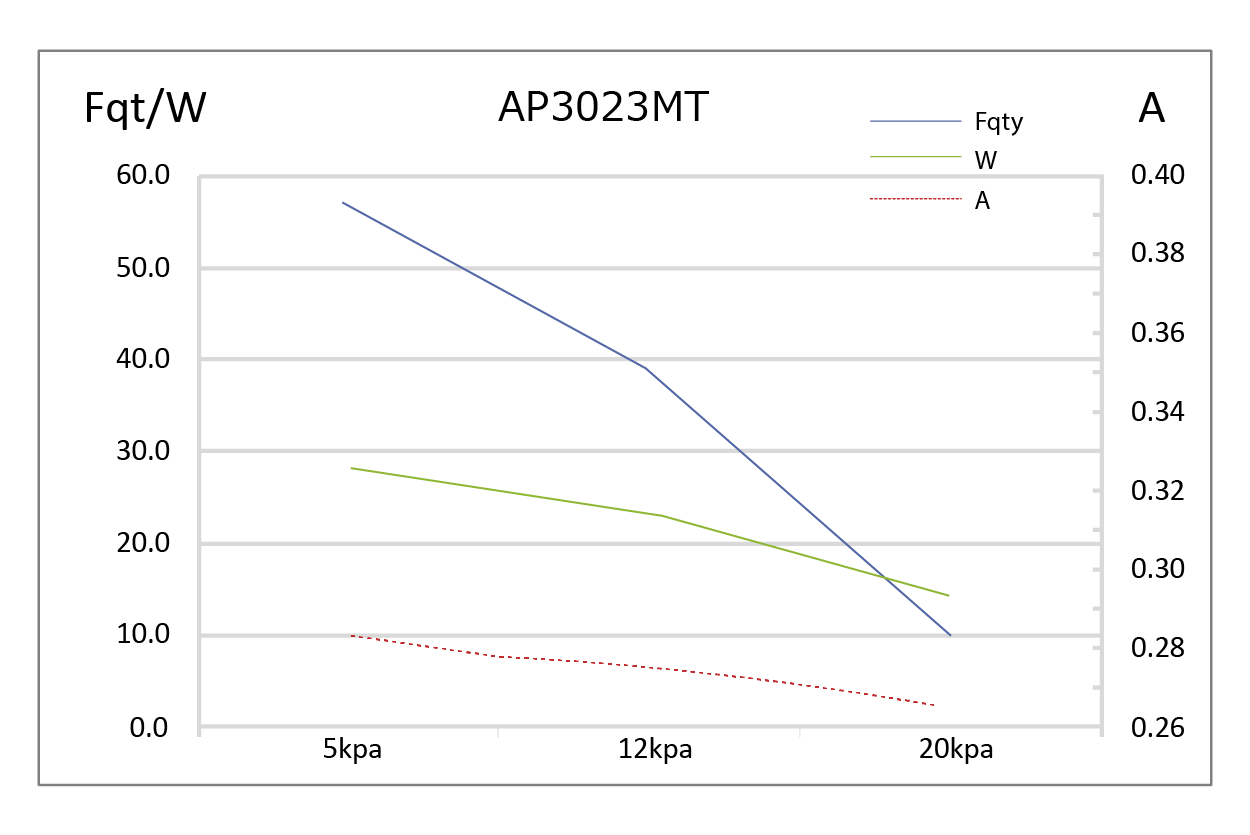

grafik-ap-30

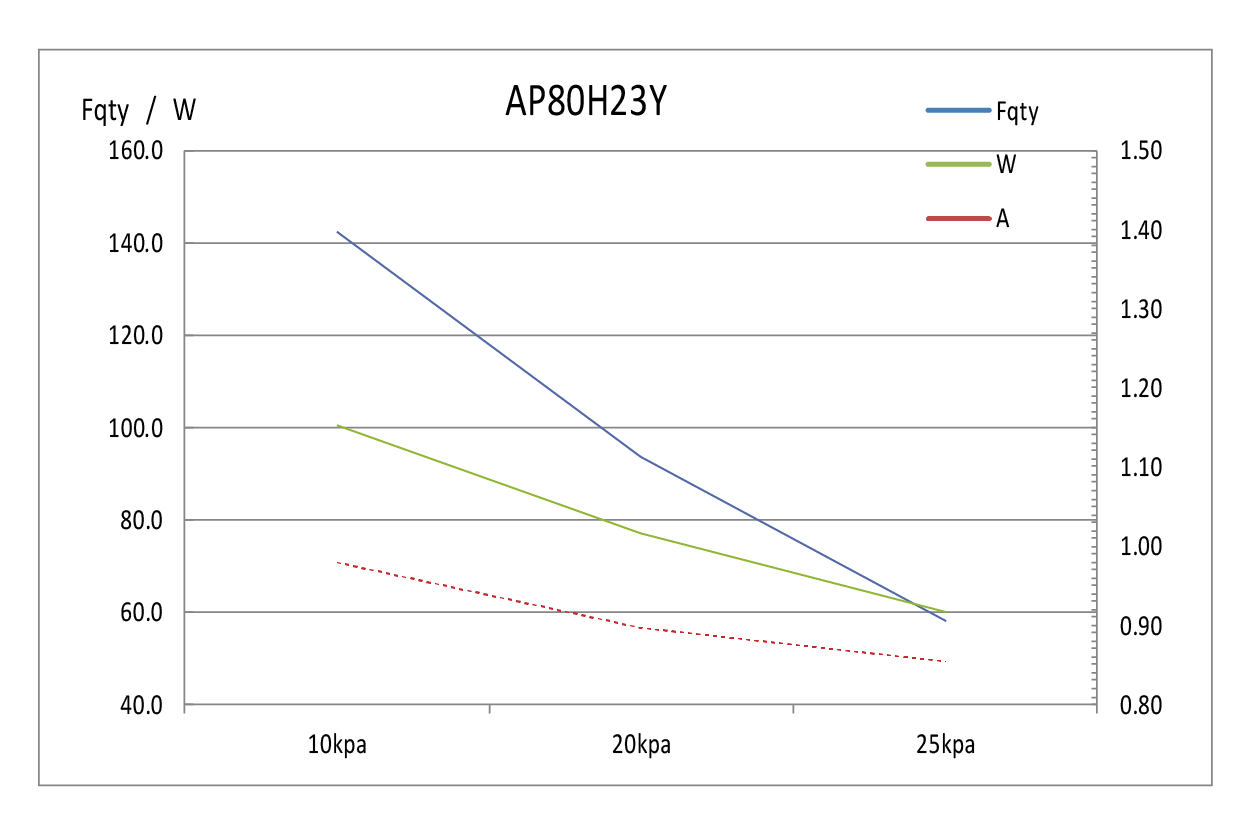

grafik-ap-80

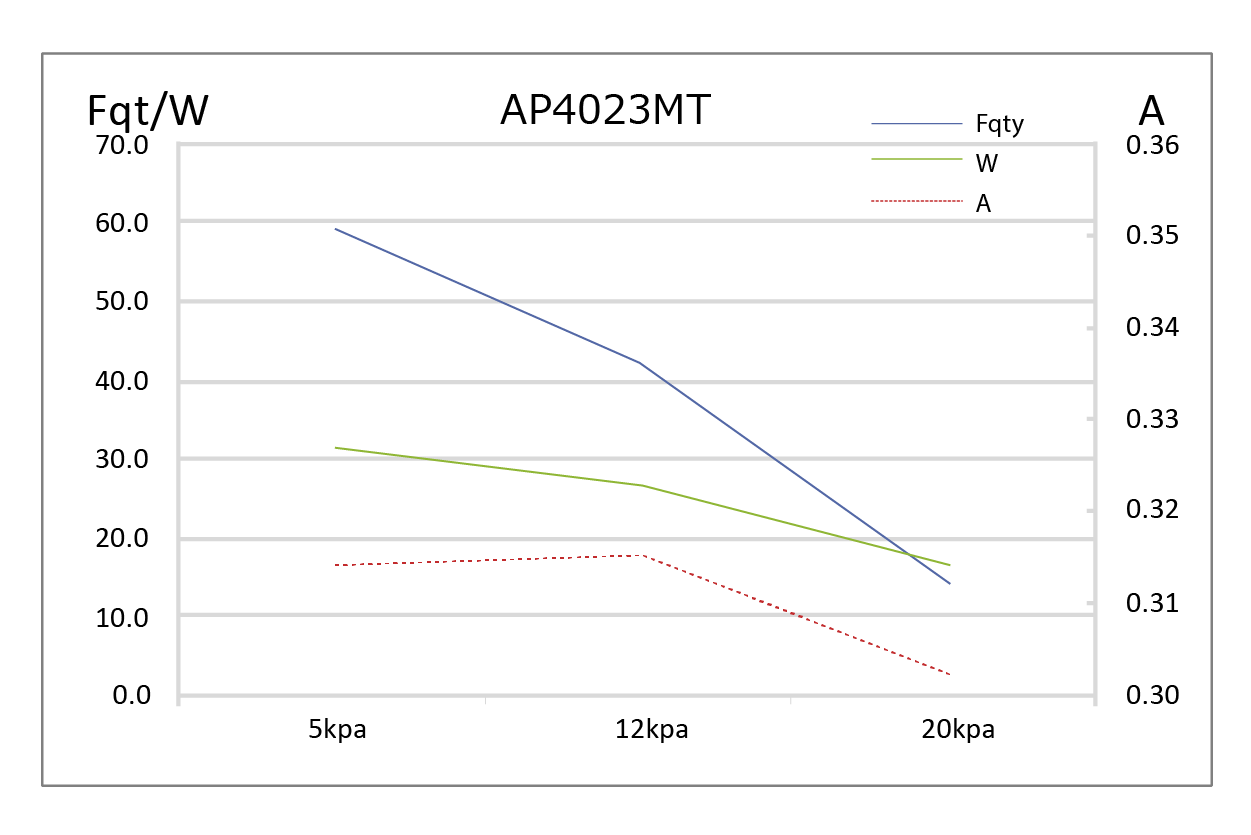

grafik-ap-40

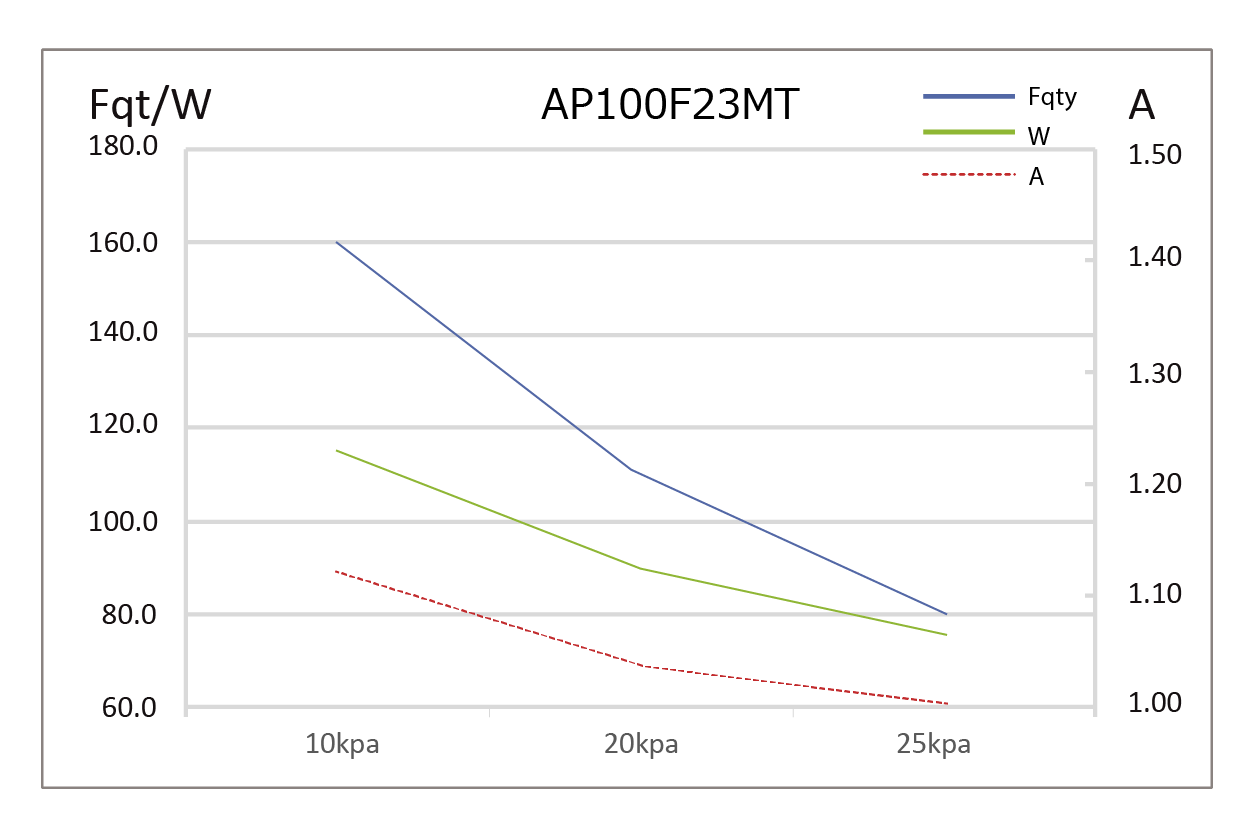

grafik-ap-100
grafik-ap-60

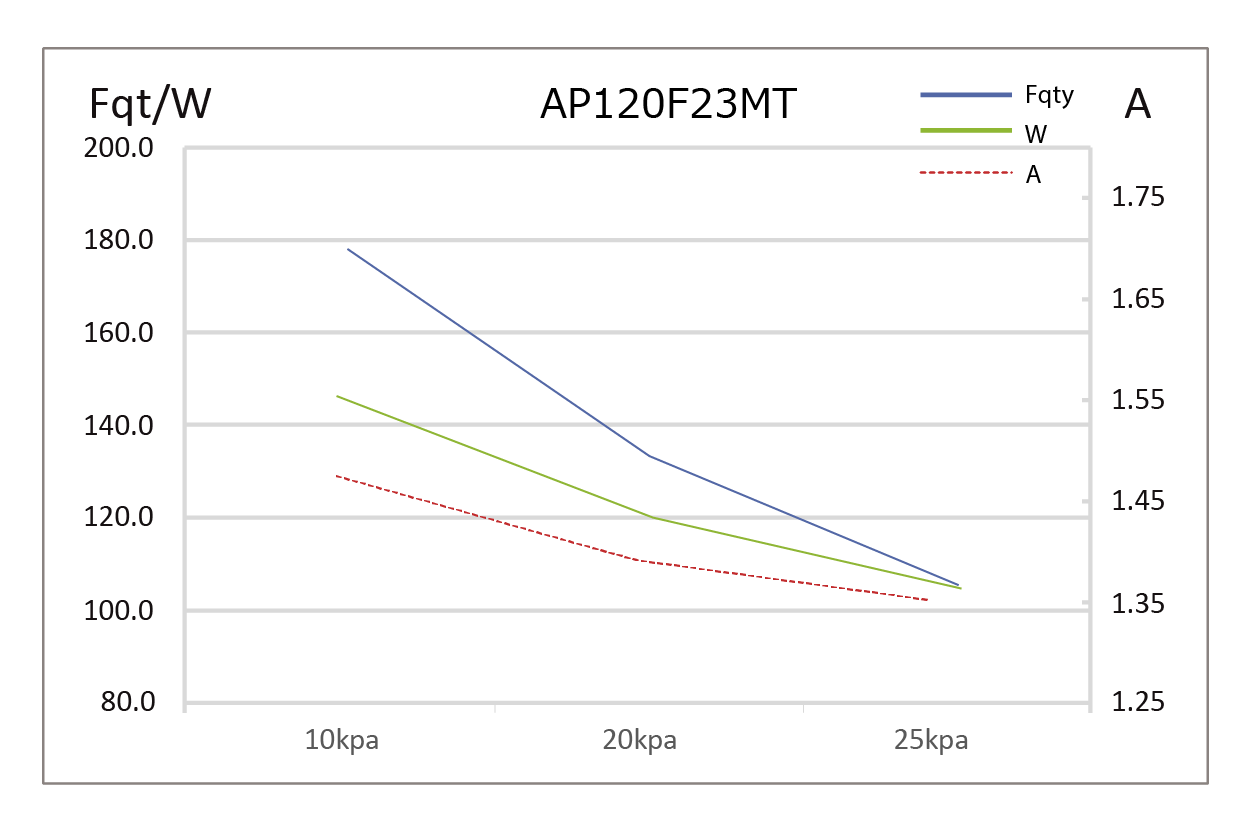

grafik-ap-120

Specs

  AP-30 AP-40 AP-60 AP-80 AP-100 AP-120
Voltage (V) AC 230 AC 230 AC 230 AC 230 AC 230 AC 230
Frequency (Hz) 50Hz 50Hz 50Hz 50Hz 50Hz 50Hz
Rated Pressure (kPa) 12 12 15 15 20 20
Input Power (W) 25 29 35 51 99 128
Rated Flow (I/min) 30 40 60 80 100 118
Outlet Dia. (mm) ⌀18 (VP 13) ⌀18 (VP 13) ⌀18 (VP 13) ⌀18 (VP 13) ⌀18 (VP 13) ⌀18 (VP 13)
Mass (Kg) 4.3 4.3 4.7 4.7 6 6
Noise Level (dB) -1m 32 34 38 38 41 41





Specs

LW

Air Pump Series



yasunaga-lw

Type

  • LW-150
  • LW-200
  • LW-240

Size

size-yasunaga-lw

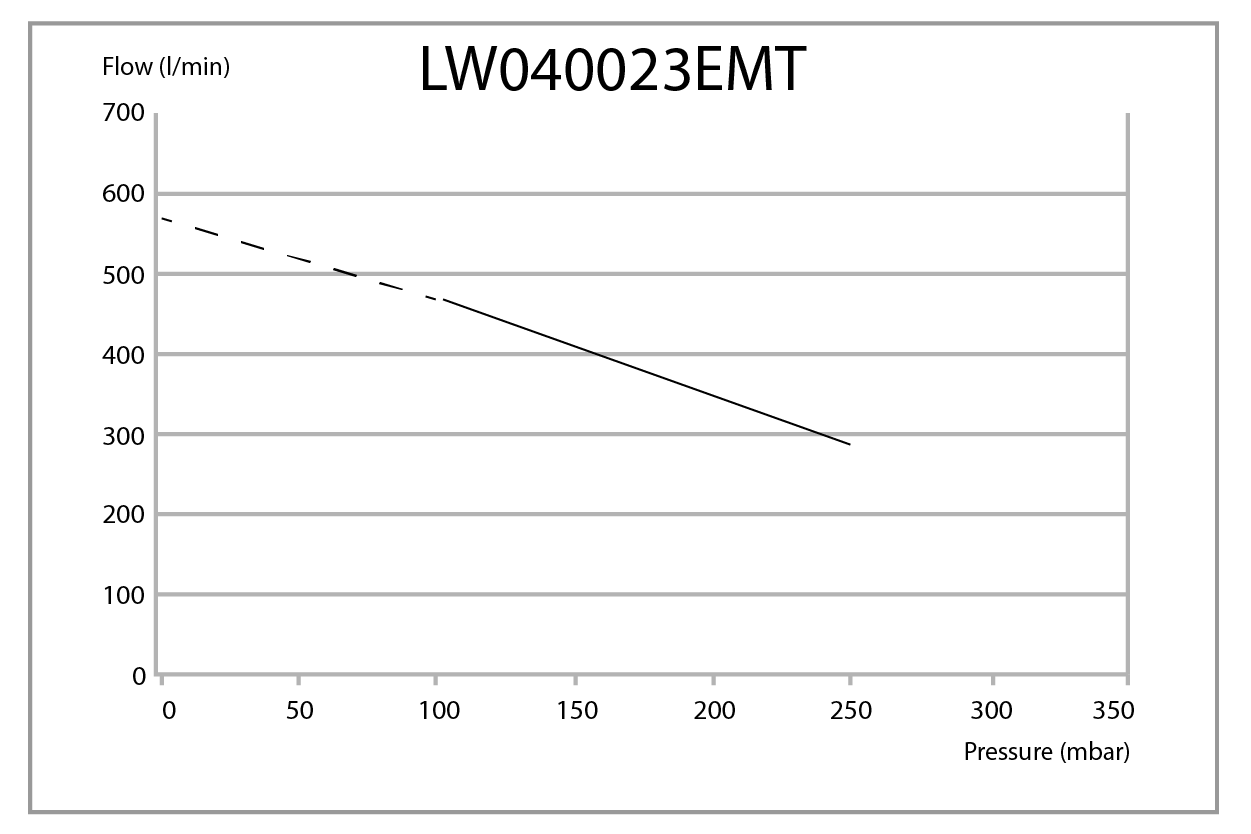

Graph

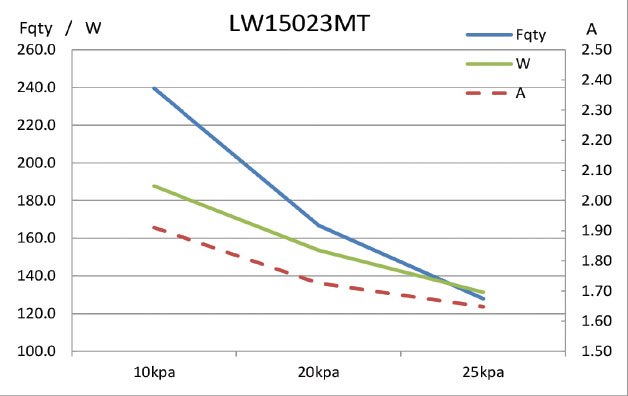

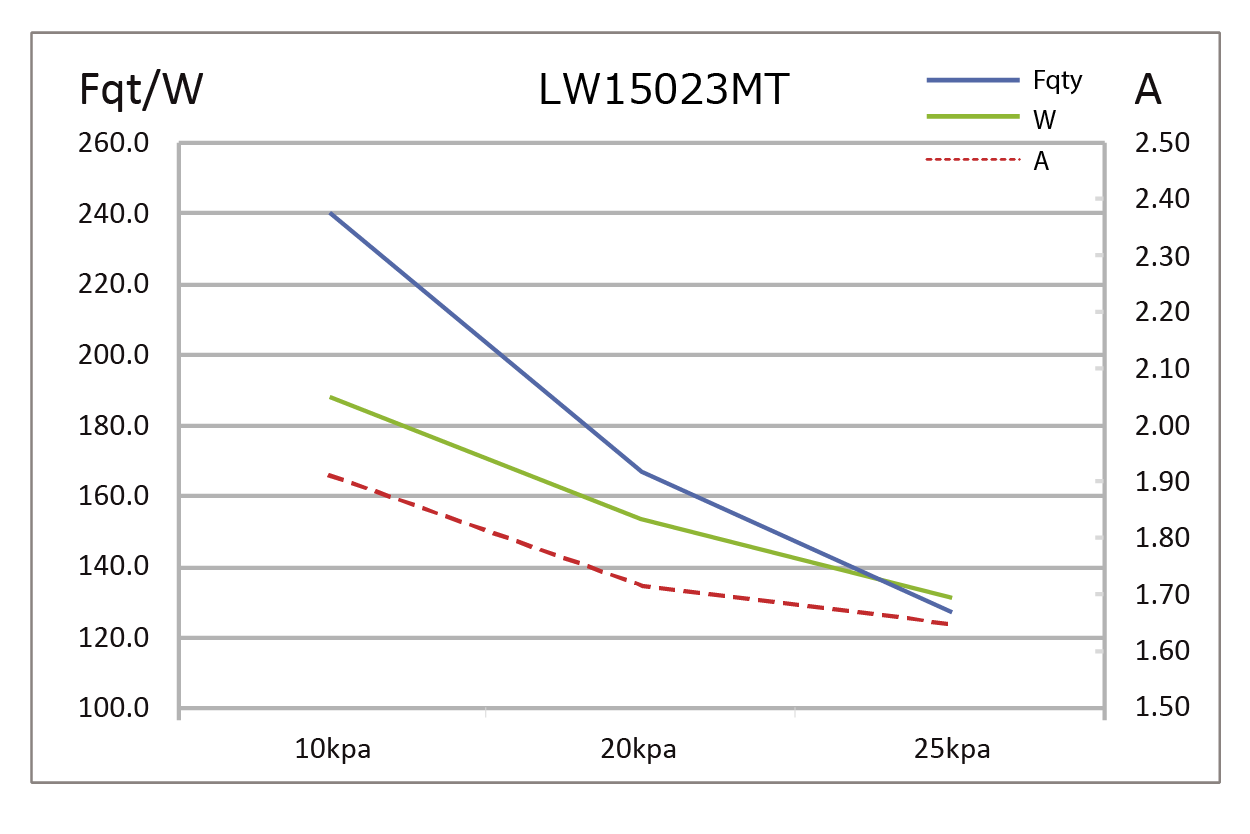

grafik-lw-150

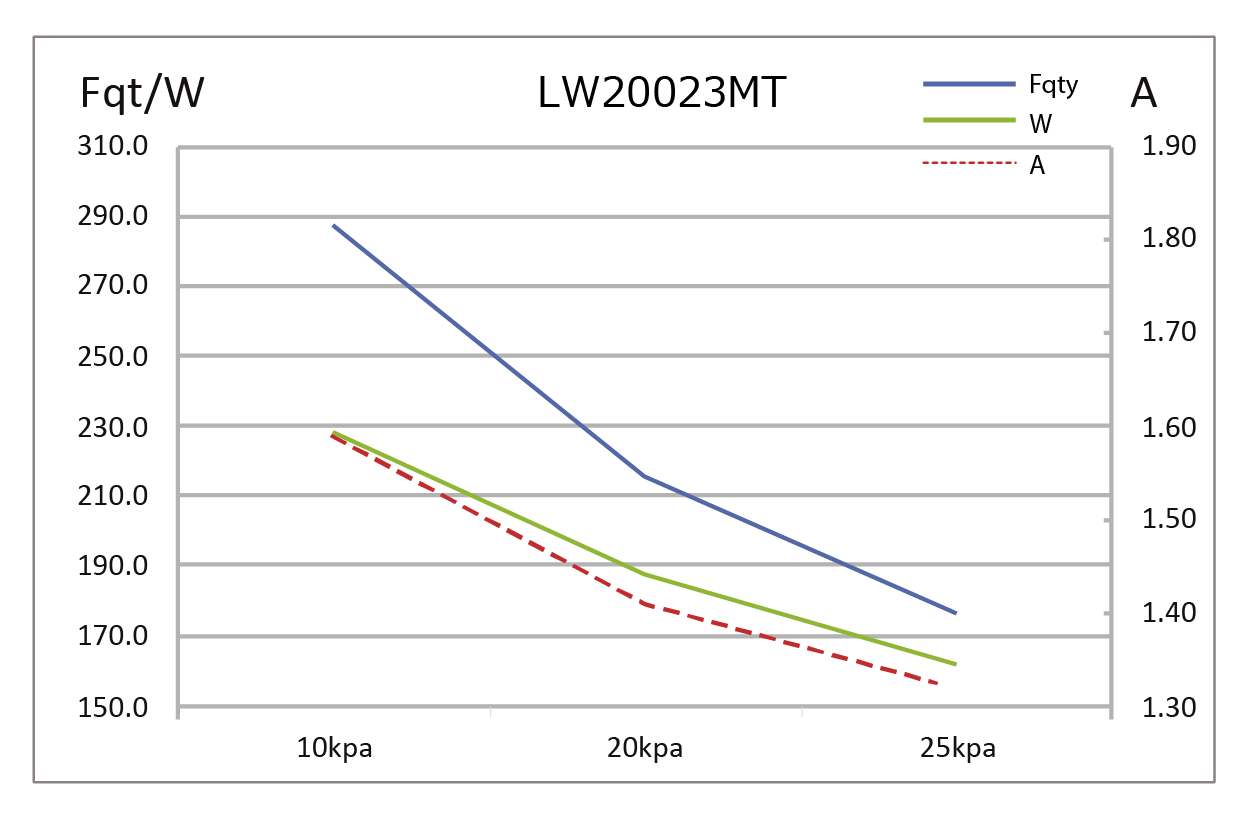

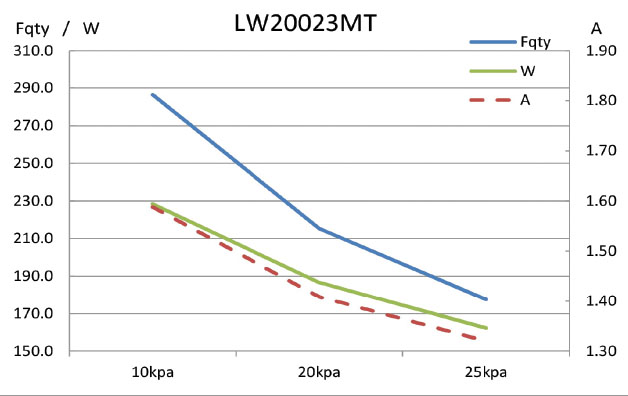

grafik-lw-200

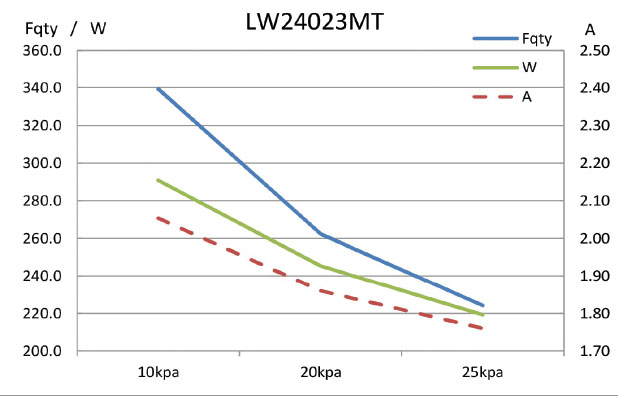

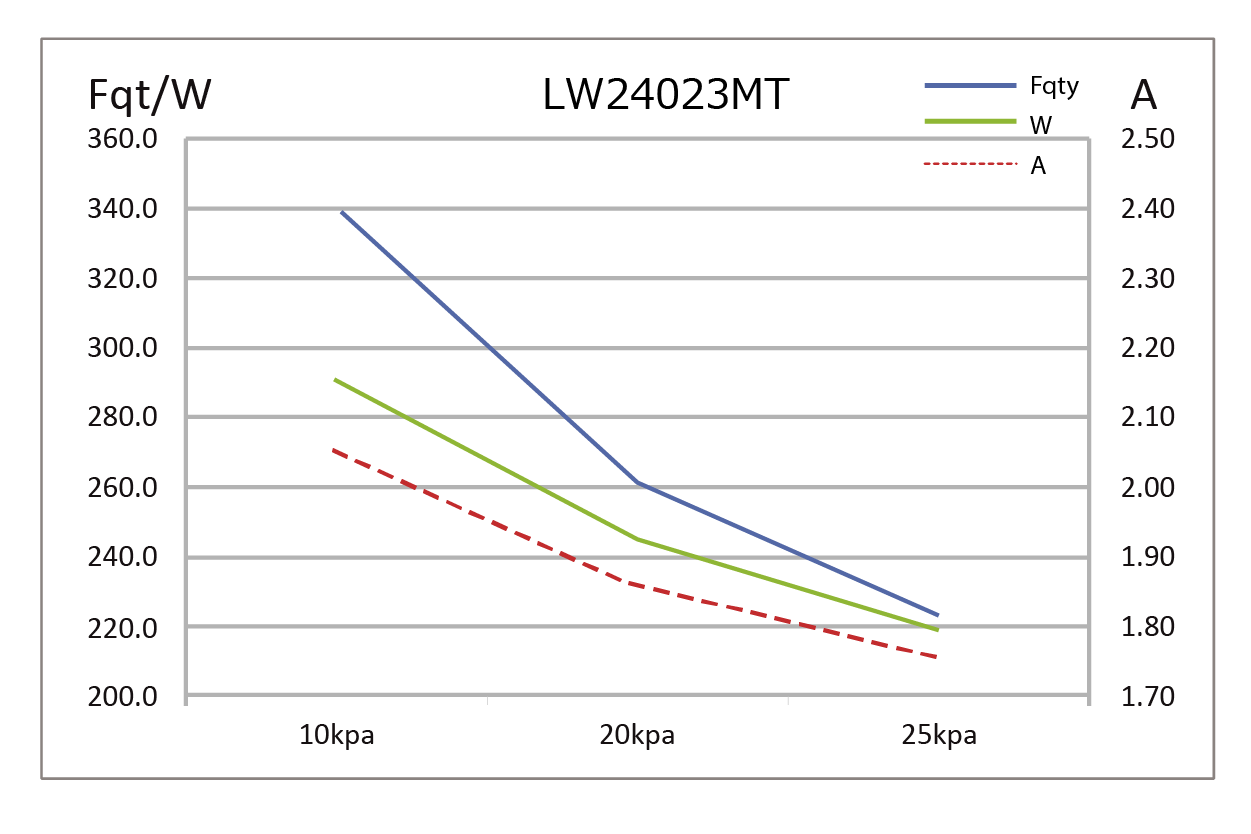

grafik-lw-240

Specs

  LW-150 LW-200 LW-240
Voltage (V) AC 230 AC 230 AC 230
Frequency (Hz) 50Hz 50Hz 50Hz
Rated Pressure (kPa) 20 20 20
Input Power (W) 155 190 250
Rated Flow (I/min) 150 200 240
Outlet Dia. (mm) ⌀26 (VP 13) ⌀26 (VP 13) ⌀26 (VP 13)
Mass (Kg) 14.1 14.1 14.1
Noise Level (dB) -1m 43 45 48

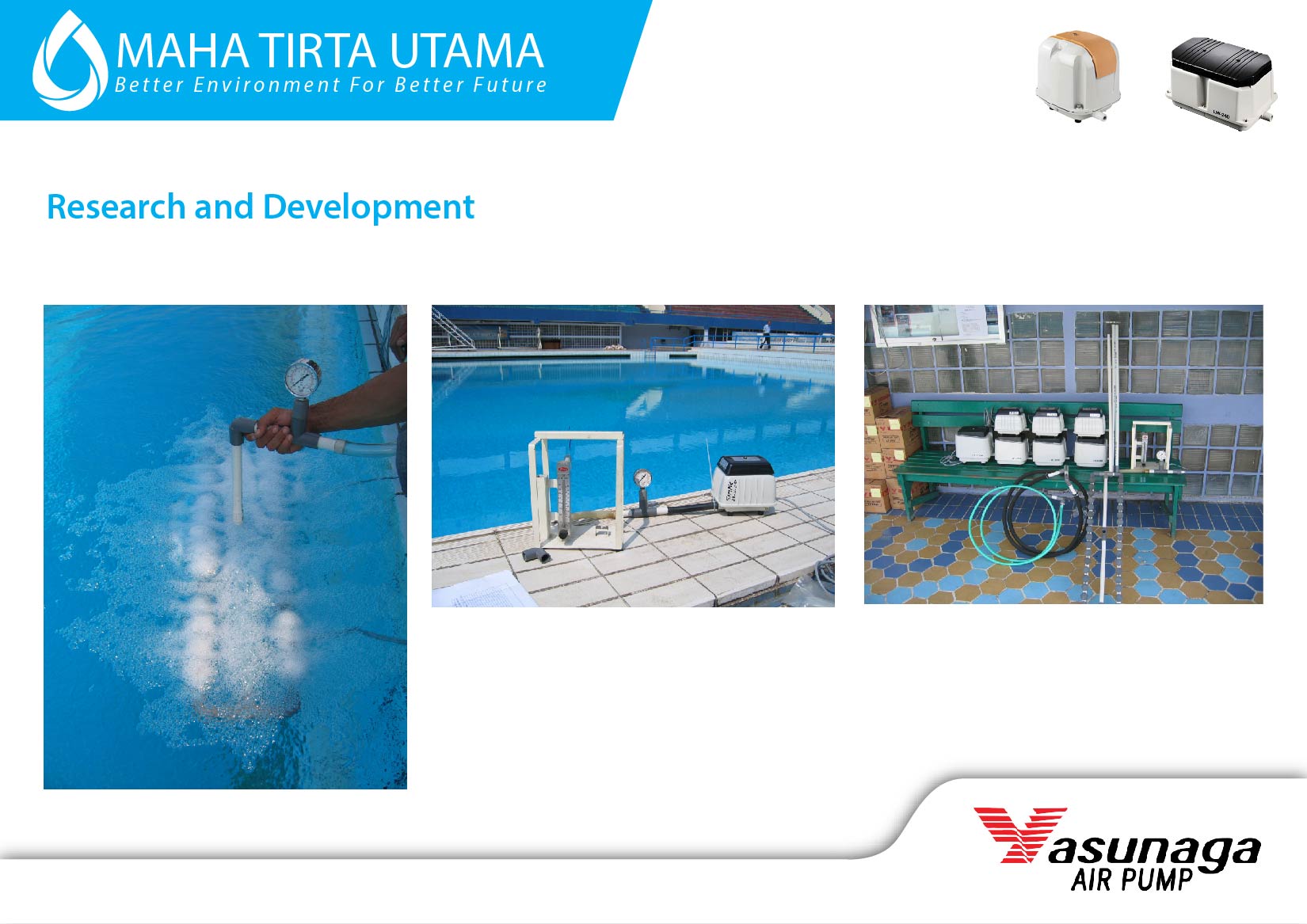

Research and Development
